SPX-05-XY/HR

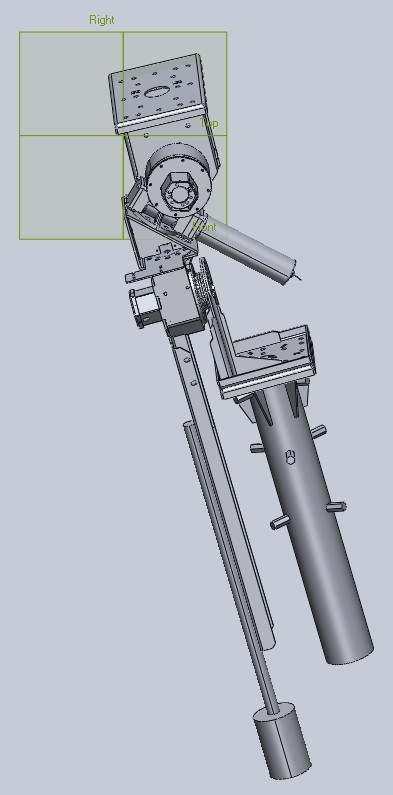

SPX-05/XY in 0/90 Degree Position
Pedestal STR-08/SDD/105 is optional

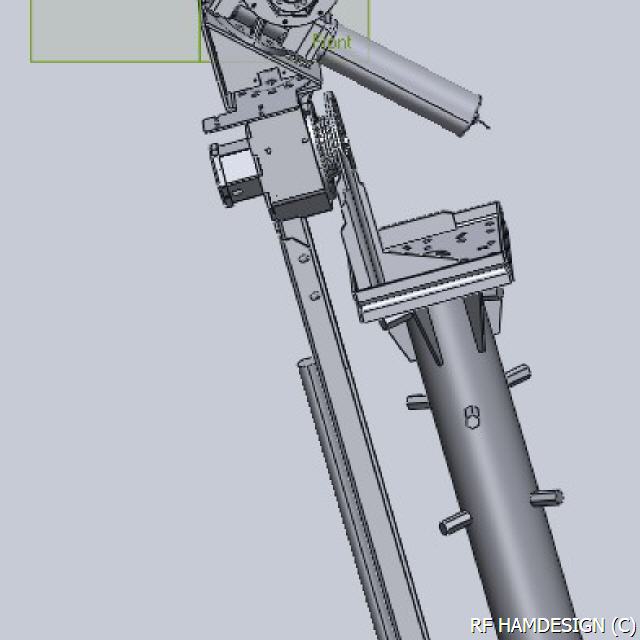

SPX-05/XY/HR in Setup Postion.
(Pedestal STR-08/SDD/105 is optional)

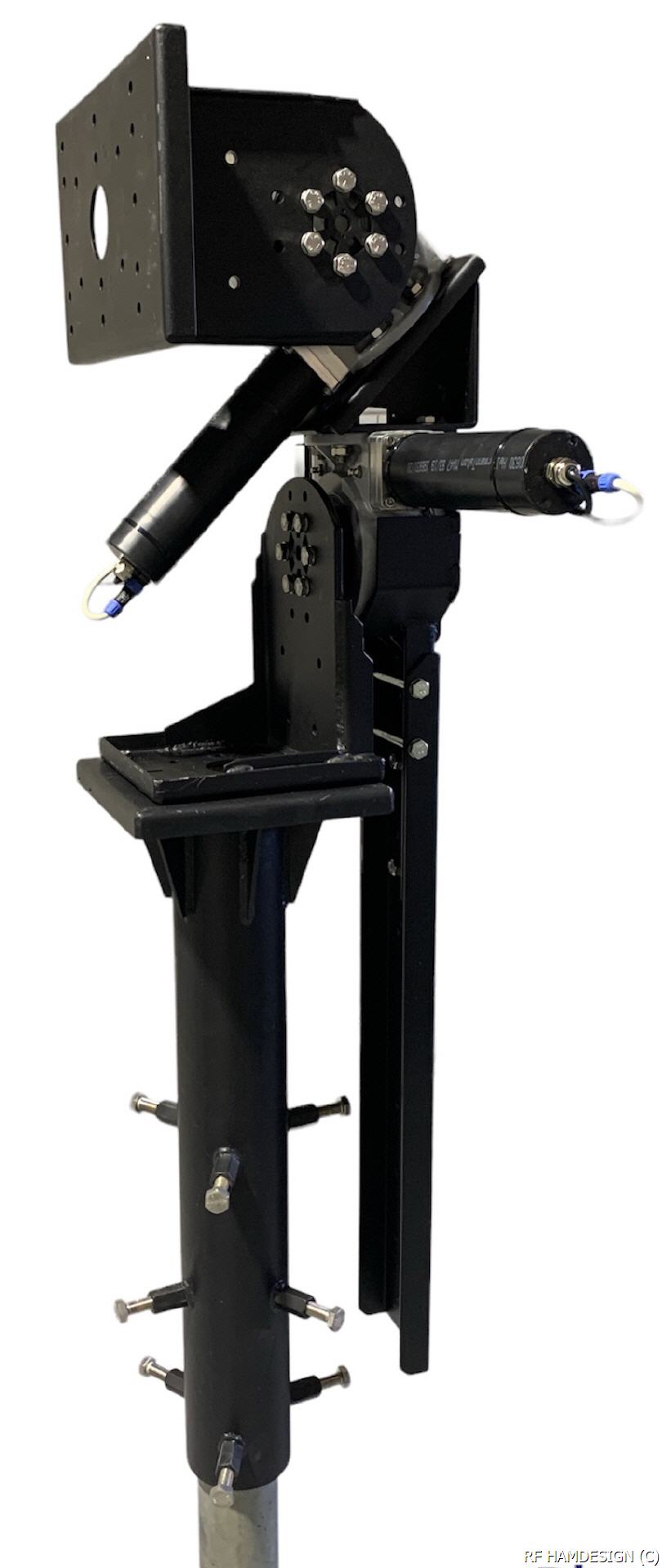

SPX-05/XY/HR Antenna rotor is designed to rotate in X & Y plane.
This result in a fast change of direction in X Y plane.
Full sky coverage motorized mount with X-Y configuration without zenith keyhole.
SPX-05/XY/HR is supplied incl controller and (convert) software to rotate in the X/Y plane.
Positions sensors are HALL Effect sensors. (High resolution (0.01°) absolute encoders optional)
View You Tube SPX-05/XY Introduction Movie
Ready to use X Y rotor incl software |

MD-02 Dual-Axe SPX-05/XY/HR controller.
SPX-05/XY/HR is supplied incl controller, model MD-01 or MD-02 which is standard loaded with X Y Convert software.
SPID created new software to drive all SPX X/Y rotators
The supplied new MD-0x controllers are supplied incl X/Y convert software
Unique X Y Rotor System in this price range:.......
With this new MD-0x software you can control a X/Y rotor by using your favorite Azimuth and Elevation tracking software
Connect the MD-0X controller to your PC, install you favorite track program, sent Azimuth and Elevation data to the controller and the rotor will rotate in X/Y plane
It is also possible to drive the controller by sending direct X/Y date to MD-0x controller to rotate the rotor in X/Y plane
Setup SPX-05/XY/HR rotor system |

MD-02 and PS-02 (PS-02 is optional)
To control the rotor through the MD-01 or MD-02 controller you need 4-core control cable for motor (1.5mm2) and 6-core shielded control cable for positions control
* SPX-05/XY/HR will handle heavy Duty systems arry's and 1 - 3 Meter diameter RF HAMDESIGN Mesh Dish.
Note: For smooth X & Y rotation it is recommended to add counterweights to the couner weight bracket.
The counter weight bracket is mounted to the rotor, you can additional order a Counter weight arm (CWA-01) to use with exercise dumbbells.
Optional available a SPID PS-01 or PS-02 power supply which fits perfect to MD-01 / MD-02
SPX-05/XY/HR supplied included: |
* SPX-05/XY/HR main body rotor + antenna bracket + Flat plate mounting bracket
* Postions sensors: Hall Effect Sensors
* MD-01 or MD-02 Rotor Controllor with Display
* MD-01dde Software (to control rotor from PC)
* Build in track interface and convert X/Y rotor software (USB)
* IP-68 Connectors
* Connectors used for control cable and power supply
* Fast setup document (RF HAMDESIGN Document)
* Free and fast reply during support questions
* Acces RF HAMDESIGN SPX and SPID Technical Support page
MODEL / OPTION | PRICE |
Rotor System, Supplied incl. Controller type MD-01 or MD-02, software. Part number: SPX-05/XY/HR |
Actual Price: Refer price list |
Ethernet Module Part No: SPID ET |
Actual Price: Refer price list |
CCM - CURRENT CONTROL MODULE measurement tool both motors. Part number: SPID-CCM |
Actual Price: Refer price list |
Power Supply AC input 100 ~ 240 Volt AC / Dual voltage output DC Part number: PS-01 or PS-02 |
Actual Price: Refer price list |
Control cables, Pedestal, more options, check Specifications sheet. | Actual Price: Refer price list |
Spare Connector Set
MD-0X or PS-0X P/N: MD-X15 |
15,00 |
Download Specification Sheet |
Download SPX-05/XY/HR Antenna rotor Specifications Sheet. [787 KB]
View Introduction movie X Y Rotor system SPX-05/XY
Price SPX-05/XY/HR rotor system incl MD-01 or MD-02 Controller |
SPX-05/XY/HR suplpied incl controller MD-01 or MD-02
Actual price, refer price list, Part Number: SPX-05/XY/HR
Shipment is to lot's of countries possible, we will be
glad to E-mail you a quotation, or use the Quote request page.
All prices in EURO, if your delivery address is outsite the EU countries no V.A.T. applies, and no VAT applies, if you are inside the EU countries and holding a V.A.T. number.
