Single Band Dish Feed



1296MHz (23cm) Horn feed

1296MHz F/D=0.45 Dish Feed
1296MHz F/D=0.45 Dish Feed

Dish feed of brass.

* Horn feed N-connector Female
* Dish Feed is Tunable
* Return loss > 28dB Download Return Loss plot
* VSWR: better than 1.07:1 (typical)
* 50 ohm
* RF Power: 1000 Watts
* F/D: 0.45 (Prime Focus)
* Waterproof
* Weight: 1.3 kg
* Delivered inc. Plot of Network Analyzer
* Feed clamp available, type CLX1

PRICE: EUR. 188,00



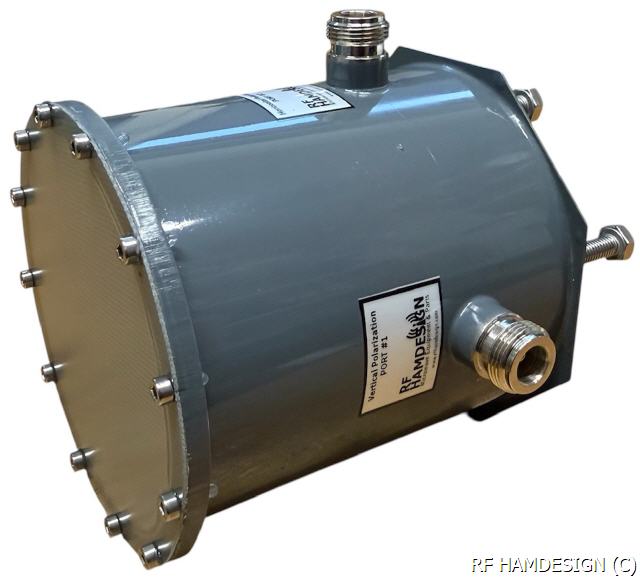

2320MHz (13cm) Horn feed

2320MHz F/D=0.45 Dish Feed
2320MHz F/D=0.45 Dish Feed

Dish feed of brass.

* Horn feed N-connector Female
* Return loss > 27dB, Download Return Loss plot
* VSWR: better than 1.10:1 (typical), Download VSWR plot
* 50 ohm
* RF Power: 1000 Watts
* F/D: 0.45 (Prime Focus)
* Waterproof
* Weight: 460 gram
* Delivered inc. Plot of Network Analyzer
* Feed clamp available, type CLX1

PRICE: EUR. 164,00



3400MHz (9cm) Horn feed

3400MHz F/D=0.45 Dish feed
3400MHz F/D=0.45 Dish feed

Dish feed of brass and made on lathe with high percision.

* Horn feed N-connector Female
* Return loss > -28dB
* VSWR: better than 1.07:1 (typical)
* 50 ohm
* RF Power: 500 Watts
* F/D: 0.45 (Prime Focus)
* Waterproof
* Weight: 790 gram
* Delivered inc. Plot of Network Analyzer
* Feed clamp available, type CLX2

Product is END OF LIFE



5760MHz (6cm) Horn feed

5760MHz F/D=0.45 Dish feed
5760MHz F/D=0.45 Dish feed

Dish feed of brass and made on lathe with high percision.

* Horn feed N-connector Female
* Return loss > -28dB
* VSWR: better than 1.07:1 (typical)
* 50 ohm
* RF Power: 500 Watts
* F/D: 0.45 (Prime Focus)
* Waterproof
* Weight: 290 gram
* Delivered inc. Plot of Network Analyzer
* Feed clamp available, type CLX2

Product is END OF LIFE



10368MHz (3cm) Horn feed

X-Band Linear Dish Feed
X-Band Linear Dish Feed

Dish feed of Aluminum CNC milled with high percision.
Delivered inc Measurement report.

* For dish with F/D 0.35 .....0.4 (Prime Focus)
* SMA connector Female
* Return loss typ. 27dB
* 50 ohm
* RF Power: 100 Watts
* Delivered inc. water proof cap
* Weight: 70 gram
* Delivered inc. Plot of Network Analyzer
* Feed clamp available, type CLX-02
* Download Specifications sheet in PDF [138 KB]
PRICE: EUR. 99,00

Click here for 3cm dishes


C-Band single band Dish feed
C-Band single band Dish feed

SINGLE C-BAND dish feed 6cm (5760 MHz)
(Other C-Band frequency on request)

Specification:
* SMA-connector Female
* 50 ohm
* Power: 50W
* Return loss > 28dB
* Waterproof
* F/D: 0.45 - 0.5 (Prime Focus)
* Dimensions: D=75mm / L=95mm
* Weight: 145 gram
* Delivered inc. Network analyzer plot.
* Feed clamp available, type CLX2

PRICE: EUR. 80,00
Type FPF R6


3cm Dish feed
3cm Dish feed

SINGLE BAND X-Band dish feed 3cm (10368 MHz)
(Other frequency on request)

Specification:
* SMA-connector Female
* 50 ohm
* Power: 20W
* Return loss > 25dB
* Waterproof
* F/D: 0.45 - 0.5 (Prime Focus)
* Dimensions: D=75mm / L=95mm
* Weight: 145 gram
* Plot of dish feed: 10368 MHz
* Delivered inc. Network analyzer plot.
* Feed clamp available, type CLX2

PRICE: EUR. 80,00
Type FPF R3

Click here for 3cm dishes
