Es’hailSat 2

The geostationary satellite Es’hail-2 carrying amateur radio transponders launched from Kennedy Space Center at 20:46 GMT on Thursday, November 15, 2018 and is now in a geostationary orbit at 25.5° East.

These are the first amateur radio transponders to be put into geostationary orbit and they are expected to link radio amateurs from Brazil to Thailand.

RF HAMDESIGN Offers Single and Dual Band Dish Feeds:

Model: Single Band LHCP Uplink S-Band Dish Feed

Model: DUAL Band LHCP Uplink S-Band and Linear Downlowdlink X-Band Dish Feed

Es’hail 2 / QO-100, S-Band LHCP Uplink and Linear X-Band Downlink Dish Feed
LH-24ESH:  Uplink and Downlink Dish Feed Es-Hail 2 Sat
LH-24ESH: Uplink and Downlink Dish Feed Es-Hail 2 Sat (Picture: 1.2 Mesh DISH + LH-24ESH + CLX-1 Bracket + BR-50 Bracket)


SOLD OUT / NO LONGER AVAILABLE


DUAL BAND Es’hail 2 / QO-100 Uplink and Downlink dish feed

LHCP & Linear Dish feed tuned to 2.4GHz and 10.4GHz (Downlink and Uplink)
(Left Hand Circular Polarization will result in RHCP when placed in front of a reflector (Dish)
This Dish Feed is tuned to the Es’hail-2 Download and Uplink Narrowband and Wideband Linear transponder and supplied incl. measurement plot of our Network analyzer.

LH-24ESH:  Uplink and Downlink Dish Feed Es-Hail 2 Sat
LH-24ESH: Uplink and Downlink Dish Feed Es-Hail 2 Sat

Specifications:

* Tuned to 2.4GHz LHCP Polarization
* Tuned to 10.4 GHz Linear Polarization **
* Prime Focus Dish Feed !
* Connector: 2.4GHz N-Conn Fem / 10.4GHz SMA Conn Fem
* 50 ohm
* Return loss >25dB
* Waterproof
* F/D: 0.40 - 0.45 (Prime Focus)
* Dimensions Round: D=160mm / L=50mm
* Weight: 0.47 Kg
* RF Power 2400MHz Max 150 Watts CW
* Need Dish Feed Bracket: Type CLX-01

** Note: Narrow Band = Vertical polarization and Wide Band = Horizontal polarization. (Dish feed must be rotated 90 degree)

Price and Spec sheet:
Download Spec sheet Es-Hail 2 Dish feed
Download Spec sheet Es-Hail 2 Dish feed

PRICE Es’hail 2 / QO-100, Uplink and Downlink Dish Feed : SOLD OUT / No longer available
P/N: LH-24ESH

TIP:
Combination with a 1Meter or 1.2Metr Dish KIT + BR-50 Fixed Elevation Bracket and this Dual Band 2.4 & 10.4 GHz Dish feed is excellent to use as Down & Uplink antenna !
Our Mesh Dish Antenne Dish can be found here: 1M Mesh Dish / 1.2 Mesh Dish

Fixed Elevation Dish Bracket P/N: BR-50
Download Price list to view actual prices.


Download LH-24ESH [217 KB] , Dual Band Dish feed Spec sheet.

Es’hail 2 / QO-100, S-Band LHCP Uplink Dish Feed
LHCP Helix DISH Feed
LHCP Helix DISH Feed


LHCP HELIX dish feed,
Left Hand Circular Polarization will result in RHCP when placed in front of a reflector (Dish)
This Dish Feed is tuned to the Es’hail-2 Uplink Narrowband and Wideband Linear transponder and supplied incl. measurement plot of our Network analyzer.

Specification:

* Tuned to Es’hail-2 Uplink
* Prime Focus Dish Feed !
* Connector N-Female
* 50 ohm
* Return loss > 30dB
* Waterproof
* F/D: 0.45 - 0.5 (Prime Focus)
* Dimensions: D=110mm / L=200mm
* Weight: 0.5Kg
* RF Power 2400MHz Max 150 Watts
* Feed clamp available, type CLX-01

Combination with a 1Meter Dish KIT + BR-50 Fixed Elevation Bracket and this LHCP Dish feed is excellent to use as Uplink antenna !
Our Mesh Dish Antenne Dish can be found here: 1M Mesh Dish

Fixed Elevation Dish Bracket P/N: BR-50
Download Price list to view actual prices.

Note: HELIX Dish feeds are available for other frequency. Mail for info

1 Meter Dish and LHCP Dish Feed
1 Meter Dish and LHCP Dish Feed

PRICE Es’hail-2 Dish Feed: EUR. 121,00
Type LH-25EH

Note: HELIX Dish feeds are available for other frequency. Mail for info

Fixed Elevation Dish Mounting Bracket
BR-50
BR-50

Bracket used to mount your dish in a fixed Elevation position

This bracket can be fixed in elevation from 0 to max 90 degree, a great tool for use with Es-HailSat 2 !
Supplied including mast mounting bracket
BR-50 can be used with our Mesh Dishes up to 1.9 Meter diameter.

Weight: 2.5Kg
Max. Mast mount diameter: 52mm

Price BR-50: Refer PRICE list

More pictures: Accessories part

Linear Down-link dish feed
Linear 10GHz Downlink Dish feed (Offset Dish)
Linear 10GHz Downlink Dish feed (Offset Dish)


Single Band LINEAR dish feed, X-Band (10GHz) Downlink Frequency

This Dish Feed is tuned to the Es’hail-2 Downlink Narrowband and Wideband X-Band Linear transponder and can be placed in front of a offset Dish.

Specification:

* Tuned to Es’hail-2 Downlink
* Offset Dish Feed !
* Frequency range: 10200 - 10500 MHz
* Polarization: Vertical or Horizontal
* Suitable for offset Dish with F/D= 0.6 - 0.7
* WR-90 Waveguide Flange Mount at input
* Supplied incl. 4 screws to hold WR-90 Flange
* CNC Machined Horn Dish Feed
* Return Loss >28dB
* Weight: 280Grams
* Material: Aluminum (EN AW-2011 T8 (h11))

PRICE 10HG2: EUR 165,- Incl 21% VAT (EUR 136 Excl. VAT)

Note: This LinearDownlink Dish feed is a passive Dish Feed !

REQUEST OR ORDER

Shipment is to lot's of countries possible, we will be
glad to
E-mail you a quotation, or use the Quote request page.

All prices are inc. 21% VAT, if your delivery address is outsite the EU countries no V.A.T. applies, and no VAT applies, if you are inside the EU countries and holding a V.A.T. number.

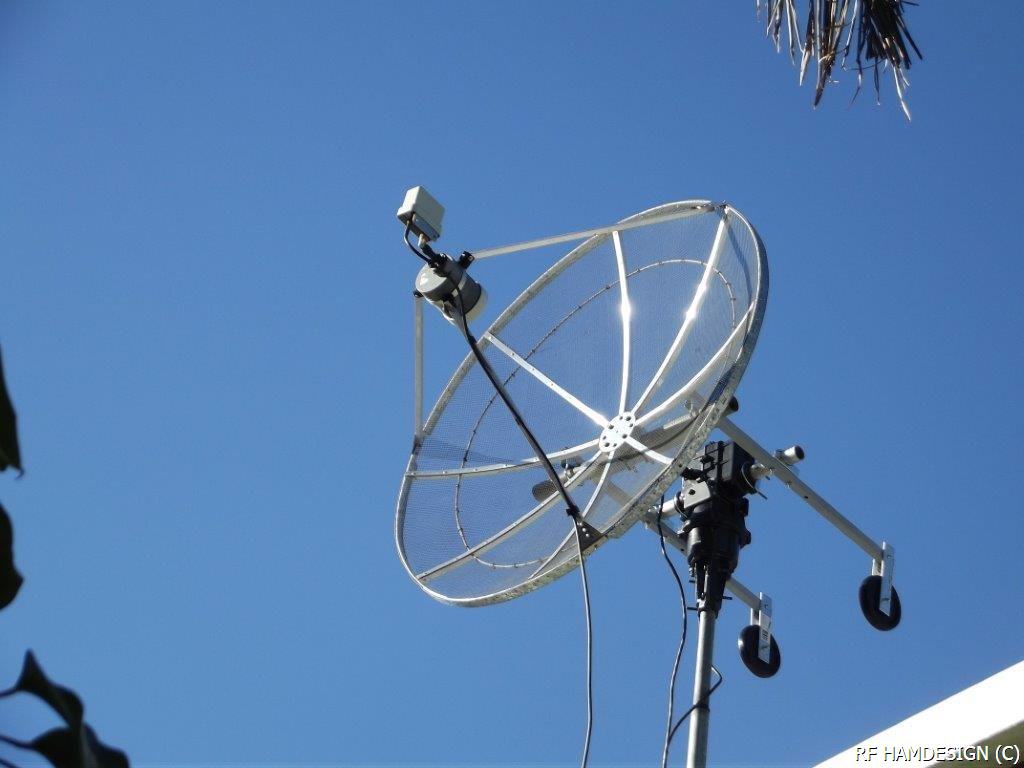

1.9Meter and 1.2Meter Mesh Dish
1.9Meter and 1.2Meter Mesh Dish Mounted in front of the dish 2 x LHCP dish feed.
