RF HAMDESIGN - N-Series Directional Coupler
Calibrated Directional Couplers
N-Series Directional couplers are deliverd calibrated at frequency and including measurent plot
(accuracy +/- 0.15dB)
On request Dir. couplers available calibrated at each frequency from 50 MHz up to 3GHz
You will receive a plot from our Scalar Network Analyzer. Request for quote
| Bi-Directional coupler | |
|---|---|
|
Bi-Directional coupler, it's the low-cost design coupler of RF Hamdesign. It can be used as calibarted power monitoring divice but they find also use in a variety of measurement applications as: * Source leveling * Isolation of signal sources * Swept transmission and rfelction measurements * Directivity max 15dB |
| 400 - 3000 MHz Calibrated Bi-Directional coupler. |
|---|
Bi-Directionel coupler 400 MHz - 3000 MHz
- Calibration accuracy: +/- 0.15dB
- Typical Coupling (dB): 432MHz-30dB / 1296MHz-20dB / 2320MHz-16dB
- RF Power Max. 1000Watts
- Insertion loss <0.2dB @ 2320MHz
- Directivity Max. 15dB
- Impedance: 50 ohm
- Input / output: N-Connector female
- Output coupling BNC-female
- Deliverd inc. calibration report.
- Type: FPR432
- PRICE: EUR 99,-
| Bi-Directionel coupler 400MHz..3000MHz / Option Male |
|---|
- Option: 1x N-connector male and 1x N-Conn. female
- Specifications same as above.
- Deliverd inc. calibration report
- Price Type: FPR 432/M
- PRICE: EUR 115,-
| Customized directional couplers |
|---|
- This directional couplers are available calibrated at your freq. specification

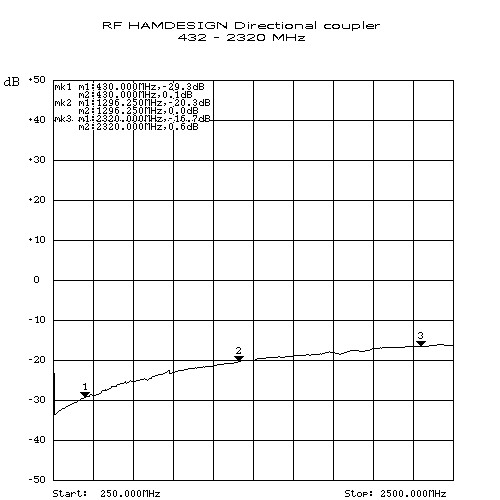

- On the right the measurement report you could receive
- Frequency range: 400 MHz up to 3 GHz
- accuracy +/- 0.15dB
- Request for quote
| 50 - 500 MHz Calibrated Bi-Directional coupler. |
|---|
Bi-Directionel coupler 50 MHz - 500 MHz
- Calibration accuracy: +/- 0.15dB
- Typical coupling (dB): 144MHz-30dB / 432MHz-22dB
- RF Power Max. 1000Watts
- Insertion loss <0.05dB @ 432MHz
- Directivity Max. 15dB
- Impedance: 50 ohm
- Input / output: N-Connector female
- Coupling output BNC-female
- Deliverd inc. calibration report
- Price Type: FPR 144
- PRICE: EUR 99,-
| 50 - 500 MHz Calibrated Bi-Directional coupler / Option Male |
|---|
- Option: 1x N-connector male and 1x N-Conn. female
- Specifications same as above.
- Deliverd inc. calibration report
- Type: FPR 144/M
- PRICE: EUR 115,-
| Customized directional couplers |
|---|
- This directional couplers are available calibrated at your freq. specification
- On the right the measurement report you could receive, we can work including several markers in the same plot.
- Frequency range: 50 MHz up to 500 MHz
- Accuracy +/- 0.15dB
- Request for quote
RF HAMDESIGN and Whatsapp:
WhatsApp: +31 650 882 889
(NO TECHNICAL SUPPORT QUESTIONS ! )
Important: before contacting us:
Only during business hours, only in english or Dutch, only for sales matters. For technical questions, technical support matters please contact us by E-Mail, see our contact RF HAMDESIGN page.
Please allow a delay of 15 minutes for the first reply.
This WhatsApp is only for TEXT / No Phone call / No Video
