SPX-02-X/Y

PICTURE: Left SPX-01/XY - Right SPX-02/XY
PICTURE: Left SPX-01/XY - Right SPX-02/XY

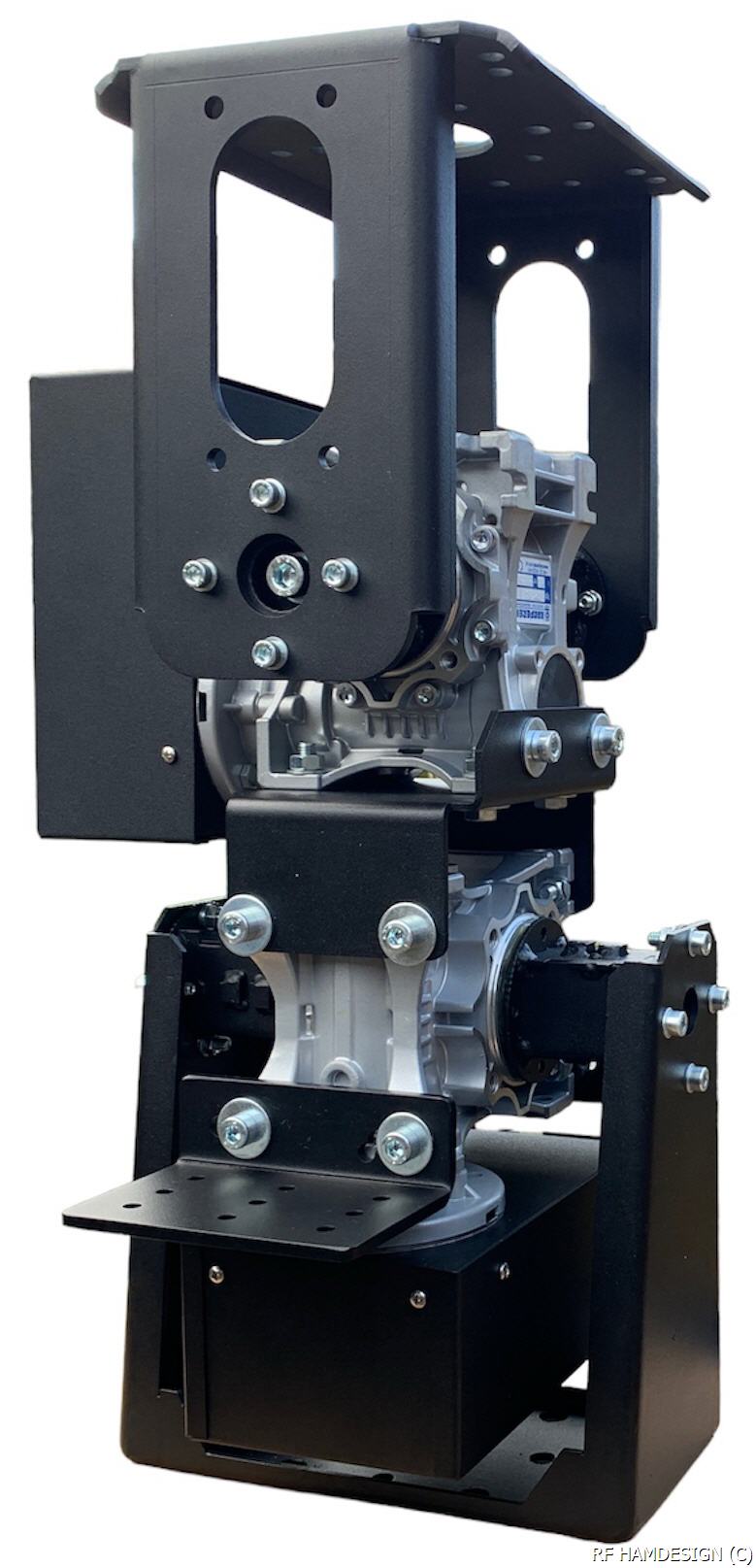

SPX-02/XY in Calibration position
SPX-02/XY in Calibration position


SPX-02/XY Antenna rotor is designed to rotate in X & Y plane.

This result in a fast change of direction in X/Y plane, Tracking near Zenith objects is very good and no Keyhole effect.

SPX-02/XY is supplied incl controller and (convert) software to rotate in the X/Y plane.

Ready to use X Y rotor incl software
MD-03 Dual-Axe SPX-02/XY controller.
MD-03 Dual-Axe SPX-02/XY controller.

SPX-02/XY is supplied incl controller, model MD-03 which is standard loaded with X Y Convert software.

SPID created new software to drive all SPX X/Y rotators
The supplied new MD-0x controllers are supplied incl X/Y convert software

Unique X Y Rotor System in this price range:.......
With this new MD-03 software you can control a X/Y rotor by using your favorite Azimuth and Elevation tracking software
Connect the MD-0X controller to your PC, install you favorite track program, sent Azimuth and Elevation data to the controller and the rotor will rotate in X/Y plane
It is also possible to drive the controller by sending direct X/Y date to MD-0x controller to rotate the rotor in X/Y plane

* Advantage X/Y rotor: faster positions change, perfect for example LEO Satellite tracking, No Keyhole effect, tracking near zenith objects.
* Disadvantage
: X/Y rotors are more difficult to setup in correct positions as AZ/EL rotators, it needs some knowledge how X/Y rotors rotate.
Note: Setup for a X Y rotor is explained in the supplied RF HAMDESIGN fast setup notes which comes included with your purchase.

Setup SPX-02/XY rotor system
MD-03 and PS-03 (PS-03 is optional)
MD-03 and PS-03 (PS-03 is optional)

To control the rotor through the MD-03 controller you need 2* 4-core control cable (1.5mm2)

* SPX-02/XY will handle small systems arry's and maximal 1.9Meter diameter RF HAMDESIGN Mesh Dish.

Note: For smooth X & Y rotation it is recommended to add counterweights to the couner weight brackets.
The counter weight brackets are mounted on each side of the Y rotation part of the X/Y rotor system
(Brackets included and are ready to place your own counter weight, counter weight is NOT included)

Optional available a SPID PS-03 power supply which fits perfect to MD-03.


SPX-02/XY supplied included:

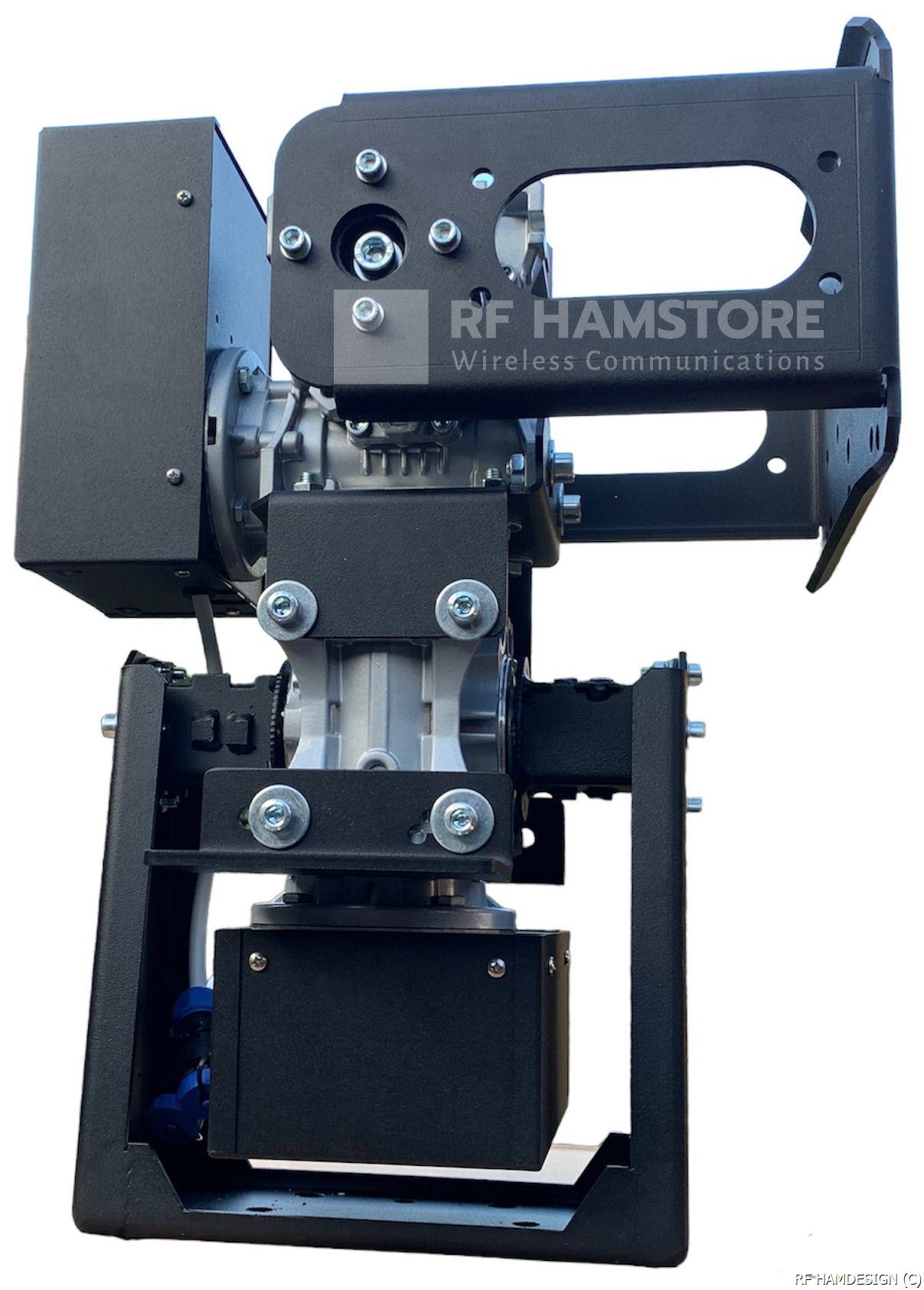

SPX-02/XY standard supplied model
SPX-02/XY standard supplied model

SPX-02/XY Rotor System is supplied included:

* SPX-02/XY main body rotor + antenna bracket + Flat plate mounting bracket
* MD-03 Rotor Controllor with Display
* MD-01dde Software (to control rotor from PC)
* Build in track interface and convert X/Y rotor software (USB)
* 2x IP-68 Connectors
* Connectors control cable and power supply

Optional: Mounting bracket mast pole P/N: PLATE-04

MODEL / OPTION PRICE
Rotor System, Supplied incl. Controller type MD03, software.
Part number: SPX-02/XY
Actual Price: Refer price list
Ethernet Module
Part No: SPID ET
Actual Price: Refer price list
CCM - CURRENT CONTROL MODULE measurement tool both motors.
Part number: SPID-CCM
Actual Price: Refer price list
Power Supply AC input 100 ~ 240 Volt AC
Part number: PS-03
Actual Price: Refer price list
Control cable, for X and Y axe: 2 *4-core (4x1,5mm2 sq)
Part Number: CC4-001/25
Actual Price: Refer price list
Mast Mount bracket.
Part number: Plate-04
Actual Price: Refer price list
Spare Connector Set MD-0X or PS-0X
P/N: MD-X15
15,00
Download Specification Sheet
Download SPX-02/XY Spec. sheet
Download SPX-02/XY Spec. sheet

Download SPX-02/XY Antenna rotor Specifications Sheet [856 KB] .

Price SPX-02/XY rotor system incl MD-03 Controller

SPX-02/XY suplpied incl controller MD-03
Actual price, refer price list, Part Number: SPX-02/XY

Shipment is to lot's of countries possible, we will be
glad to
E-mail you a quotation, or use the Quote request page.

All prices in EURO, if your delivery address is outsite the EU countries no V.A.T. applies, and no VAT applies, if you are inside the EU countries and holding a V.A.T. number.

Comparison chart
Model Rotor Weight Kg Torques Nm Max Load Y/X and AZ&EL Nm Used for Diameter RF HAMDESIGN Mesh dish Resolution Rotation Speed @ 12Volts DC Rotation Speed @ 18Volts DC Rotation Speed @ 24Volts DC Position Sensor Keyhole effect / Changing postions time
SPX-01-X/Y 16.5 50 50 1 - 1.2 Meter 0.5 degree / step 3.3 degree/sec 5.3 degree/sec NA Reed Switch No / Fast
SPX-02-X/Y 22.5 80 80 1 - 1.9 Meter 0.5 degree / step 3.1 degree/sec 5.8 degree/sec NA Reed Switch No / Fast
SPX-05-XY/HR 49.8 716 Nm 2200 1 - 4.5 Meter 0.1 degree/step NA NA 6.0 degree/sec Hall Effect sensor No / Very Fast
SPX-05-XY/ABS 49.8 716 Nm 2200 1 - 4.5 Meter 0.1 degree/step NA NA 6.0 degree/sec Absolute Encoder No / Very Fast
SPX-06-AZ&EL/HR 39 716 Nm 2200 1 - 4.5 Meter 0.1 degree/step NA NA 6.0 degree/sec Hall Effect sencor No /Very Fast
SPX-06-AZ&EL/ABS 39 716 Nm 2200 1 - 4.5 Meter 0.1 degree/step NA NA 6.0 degree/sec Absolute Encoder No / Very Fast
