RF HAMDESIGN - MESH DISH KIT 1.9 METER

1.9 meter MESH DISH KIT (6.2ft)

1.9 Meter MESH DISH KIT, with all parts
1.9 Meter MESH DISH KIT, with all parts (Some parts on the picture are not part of standard delivery)

Available without dish feed, but a matching dish feed is also available
You can find our dish feeds here,
* Note: if the dish feed you are looking for is not listed on the dish feeds page, please let us know, custom made is possible !

Each RF HAMDESIGN Mesh Dish KIT is supplied including all parts:
*Manual / *Predrilled ribs / *Stainless steel bolts / nuts / washers / *Mesh / * CNC-Milled centre / *all mounting parts and 3 leg dish feed support

1M9 Dish + 2.8mm mesh
1M9 Dish + 2.8mm mesh Dish feed is as an example = not included standard delivery

General:

* All mesh dishes are standard supplied incuding an CNC Milled HUB of Aluminum and an heavy duty mast clamp, max diameter clamp 52mm.
* Delivery is including 3-leg dish feed support. (On request a 4th Dish feed support leg is available, refer price list)
* For each Mesh dish with an F/D=0.45 we do have available a dish feed and Dish feed mounting bracket.

1.9 Meter Mesh Dish KIT supplied including all mounting parts
Supplied including all mounting parts, but without Dish feed.

* Available F/D: 0.35 / 0.4 / 0.45 / 0.5
* Weight: 7.6 kg (6mm mesh)

Standard supplied with 6mm square mesh / max freq use 6GHz
Optional: 2.8mm square mesh / max. freq use 11GHz
(Both mesh is galvanized steel)
1M9 DISH Gain and Beamwidth
Most used HAM Radio frequencies

Frequency Gain dBd -3dB angle (dgr)
1296 MHz 24.2 9.1
2320 MHz 29.2 5.1
3456 MHz 32.4 3.4
5760 MHz 35.9 2.0
1M9 DISH Gain and Beamwidth
Frequencies step by step overview

1000 MHz 21.1 10.6
2000 MHz 27.1 5.3
3000 MHz 30.6 3.6
4000 MHz 33.1 2.7
5000 MHz 35 2.1
6000 MHz 36.6 1.8
7000 MHz 38 1.5
8000 MHz 39.2 1.4
9000 MHz 40.2 1.2
10000 MHz 41.1 1.07
Available Dish feeds for use with 1M9 Mesh Dish:
You can find all our available F/D=0.45 dish feed here on this page

RF HAMDESIGN supplies up to 5-Band Linear Multi Band Dish Feeds.
LHCP / RHCP or Circular dish feeds are available as well.............

VISIT our Dish Feed Page
PRICE and Specifications 1M9 Mesh Dish Kit...........
Download 1M9 Dish KIT Specifications sheet
Download 1M9 Dish KIT Specifications sheet

Shipment to lot's of countries possible, we will be glad to E-mail you a quotation, or use the Quote request page.

Download the price list for actual prices.
Part Number 1M9 Dish: FPD 1M9 KIT

If your delivery address is outsite the EU countries no V.A.T. applies, and no VAT applies, if you are inside the EU countries and holding a V.A.T. number.

Download
Specifications 1.9 Meter Dish Kit [664 KB] in PDF Formats.

ORDER ONLINE: ORDER FORM

NEW---> 1296MHz (23cm Band) EME Full setup HAM Radio station......
Download 1296MHz, 1M9 Dish EME Full Setup
Download 1296MHz, 1M9 Dish EME Full Setup

Due to the many requests we have summarized a complete list for an EME 1296MHz Setup HAM Radio Station.

This 1.9 Meter Mesh Dish Setup for 1296MHz EME is a Bundle setup completed incl all parts to start with EME (Earth-Moon-Earth) communication
Not included is a Preamplifier, Receiver, Transmitter, coax cables etc.
But In a few words, a fully matched passive system to start with EME with an 1.9M dish + Moon Autotrack Rotor system and Circular Dual Mode dsh feed.

User info 1.9 Meter DISH 1296MHz:
Using 100W RF Output it is possible to operate various EME stations. A minimum of 200 Watt RF Output is required to hear your own echoes.
(Note: The RX Parts of your system should be in perfect condition with at least a 0.5dB NF preamplifier)
Above info is based by use of digital mode WSJTX


Download Full Bundle list 1296MHz EME [454 KB] in PDF Formats.

ORDER ONLINE: ORDER FORM

Fixed Elevation Dish Mounting Bracket
BR-50
BR-50

Bracket used to mount your dish in a fixed position

This bracket can be fixed in elevation from 0 to max 90 degree.
Supplied including mast mounting bracket
BR-50 can be used with our Mesh Dishes up to 1.9 Meter diameter.

Weight: 2.5Kg
Max. Mast mount diameter: 52mm

Price BR-50: Refer PRICE list

More pictures: Accessories part



REQUEST OR ORDER

HAM Radio station Norway (LA4ANA)
HAM Radio station Norway (LA4ANA) 1M9 Mesh Dish & 1296MHz Septum Dish feed + SPID RAS rotor

Shipment to lot's of countries possible, we will be
glad to
E-mail you a quotation, or use the Quote request page.

All prices are inc. 21% VAT, if your delivery address is outsite the EU countries no V.A.T. applies, and no VAT applies, if you are inside the EU countries and holding a V.A.T. number.

You can find all prices in our price list, download page Price List

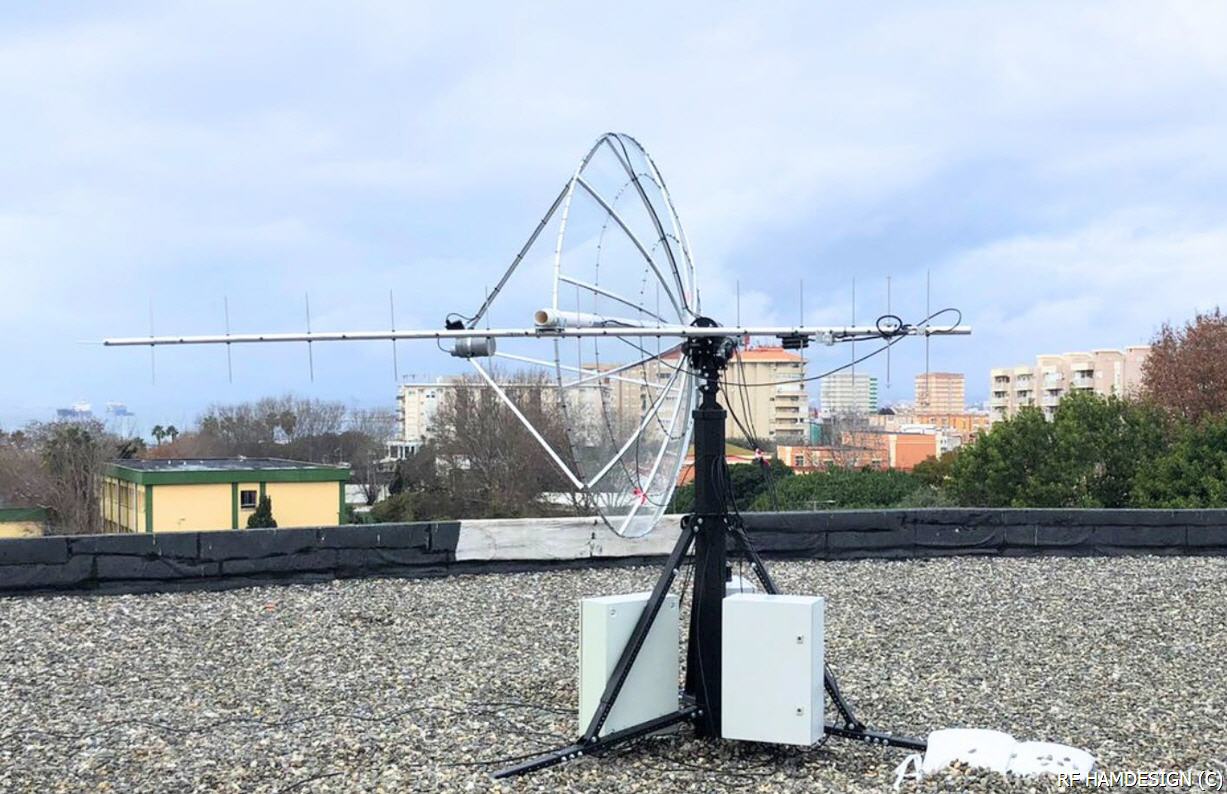

X Y Rotor + 1.9Meter Mesh Dish
X Y Rotor + 1.9Meter Mesh Dish

RF HAMDESIGN 1.9 Meter Dish + SPID BIG-RAS/HR rotor system

1.9Meter and 1.2Meter Mesh Dish
1.9Meter and 1.2Meter Mesh Dish Mounted in front of the dish 2 x LHCP dish feed.
