SPX-06/AZ&EL/BR/HR Mounted on STR-08/105 Pedestal = optional

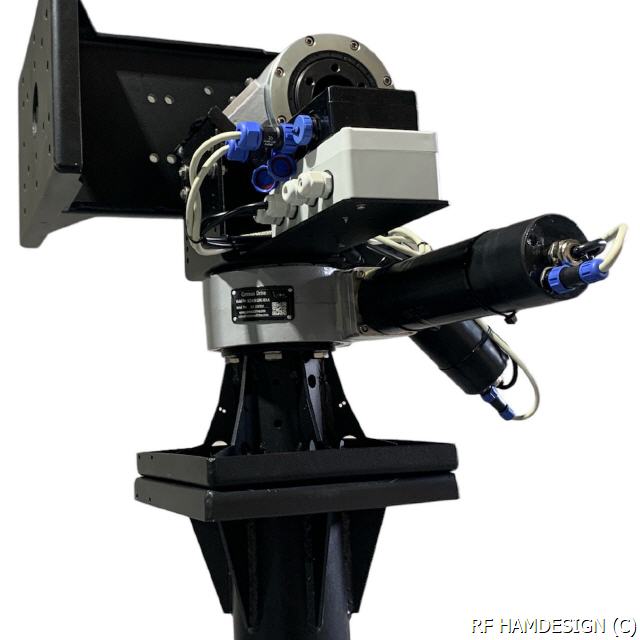

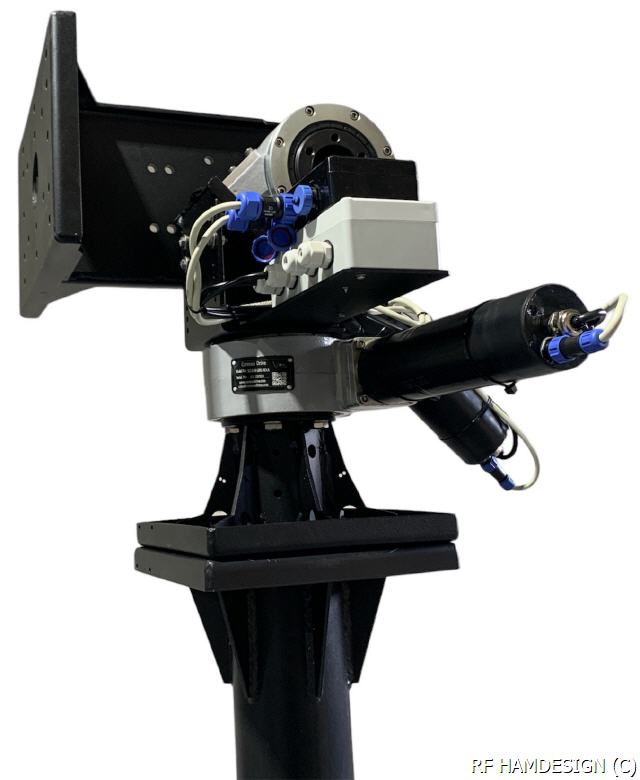

SPX-06/AZ&EL/BR/HR Antenna rotor is designed to rotate in Azimuth & Elevation plane including Antenna Mounting Bracket

SPX-06/AZ&EL/BR/HR is supplied incl antenna mounting bracket and controller and software.
Positions sensors are HALL Effect sensors, resolution: 0.1 degree/step

With this model rotor you are ready to go, no need to add a antenna mounting bracket.
Max mounting diameter RF HAMDESIGN Dish is 3Meter.

Ready to use AZ & EL rotor incl software
MD-02 Dual-Axe SPX-06/AZ&EL/HR controller.
MD-02 Dual-Axe SPX-06/AZ&EL/HR controller.

SPX-06/AZ&EL/BR/HR is supplied incl controller, model MD-01 or MD-02 which is standard loaded with our new firmware

Unique AZ&EL Rotor System in this price range:.......

With this new MD-0x software you can control a AZ&EL Antenna rotor by using your favorite Azimuth and Elevation tracking software
Connect the MD-0X controller to your PC, install you favorite track program, sent Azimuth and Elevation data to the controller and the rotor will rotate in AZ & EL plane
It is also possible to drive the controller by manual use during front buttons on front of the controller.

Setup SPX-06/AZ&EL/BR/HR rotor system
PS-01 Dual Voltage Power supply. (19" Rack model)
PS-01 Dual Voltage Power supply. (19" Rack model) (High Voltage output for SPX-05 and 06 series)

To control the rotor through the MD-01 or MD-02 controller you need 4-core control cable for motor (1.5mm2) and 6-core shielded control cable for positions control

* SPX-06/AZ&EL/BR/HR will handle heavy Duty systems arry's and 1 - 3.0 Meter diameter RF HAMDESIGN Mesh Dish.
Note: For smooth Azimuth & Elevation rotation it is recommended to add counterweights.

Optional available a SPID PS-01 or PS-02 power supply which fits perfect to MD-01 / MD-02

SPX-06/AZ&EL/BR/HR supplied included:
SPX-06/AZ&EL and STR-08/105
SPX-06/AZ&EL and STR-08/105 (STR-08/105 is optional)

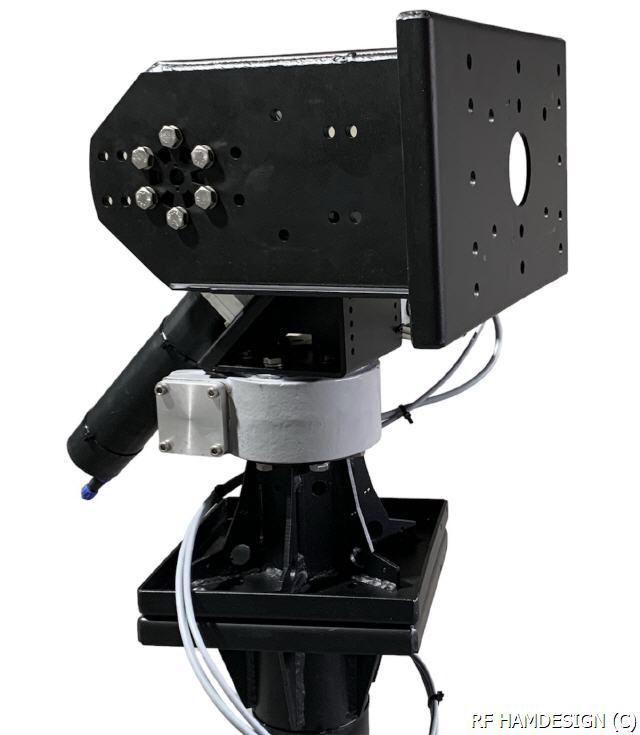

* SPX-06/AZ&EL/BR/HR main body rotor + Flat plate mounting platform
* Postions sensors: Hall Effect Sensors
* MD-01 or MD-02 Rotor Controllor with Display
* MD-01dde Software (to control rotor from PC)
* Build in track interface and version v2.0.xxx Firmware (USB)
* IP-68 Connectors
* Connectors used for control cable and power supply
* Fast setup document (RF HAMDESIGN Document)
* Free and fast reply during support questions
* Acces RF HAMDESIGN SPX and SPID Technical Support page

Rotor System, Supplied incl. Controller type MD-01 or MD-02, software.
Part number: SPX-06/AZ&EL/BR/HR
Actual Price: Refer price list
Ethernet Module
Part No: SPID ET
Actual Price: Refer price list
CCM - CURRENT CONTROL MODULE measurement tool both motors.
Part number: SPID-CCM
Actual Price: Refer price list
Power Supply AC input 100 ~ 240 Volt AC / Dual voltage output DC
Part number: PS-01 or PS-02
Actual Price: Refer price list
Control cables, Pedestal, more options, check Specifications sheet. Actual Price: Refer price list
Spare Connector Set MD-0X or PS-0X
P/N: MD-X15
Download Specification Sheet
Download SPX-06/AZ&EL/BR/HR Spec. sheet
Download SPX-06/AZ&EL/BR/HR Spec. sheet

Download SPX-06/AZ&EL/BR/HR Antenna rotor Specifications Sheet.
